High power and flexibility
The structure is sturdy and highly reliable
Excellent heat dissipation efficiency, low purchase and operating costs
Relatively convenient to move and highly adaptable to the environment

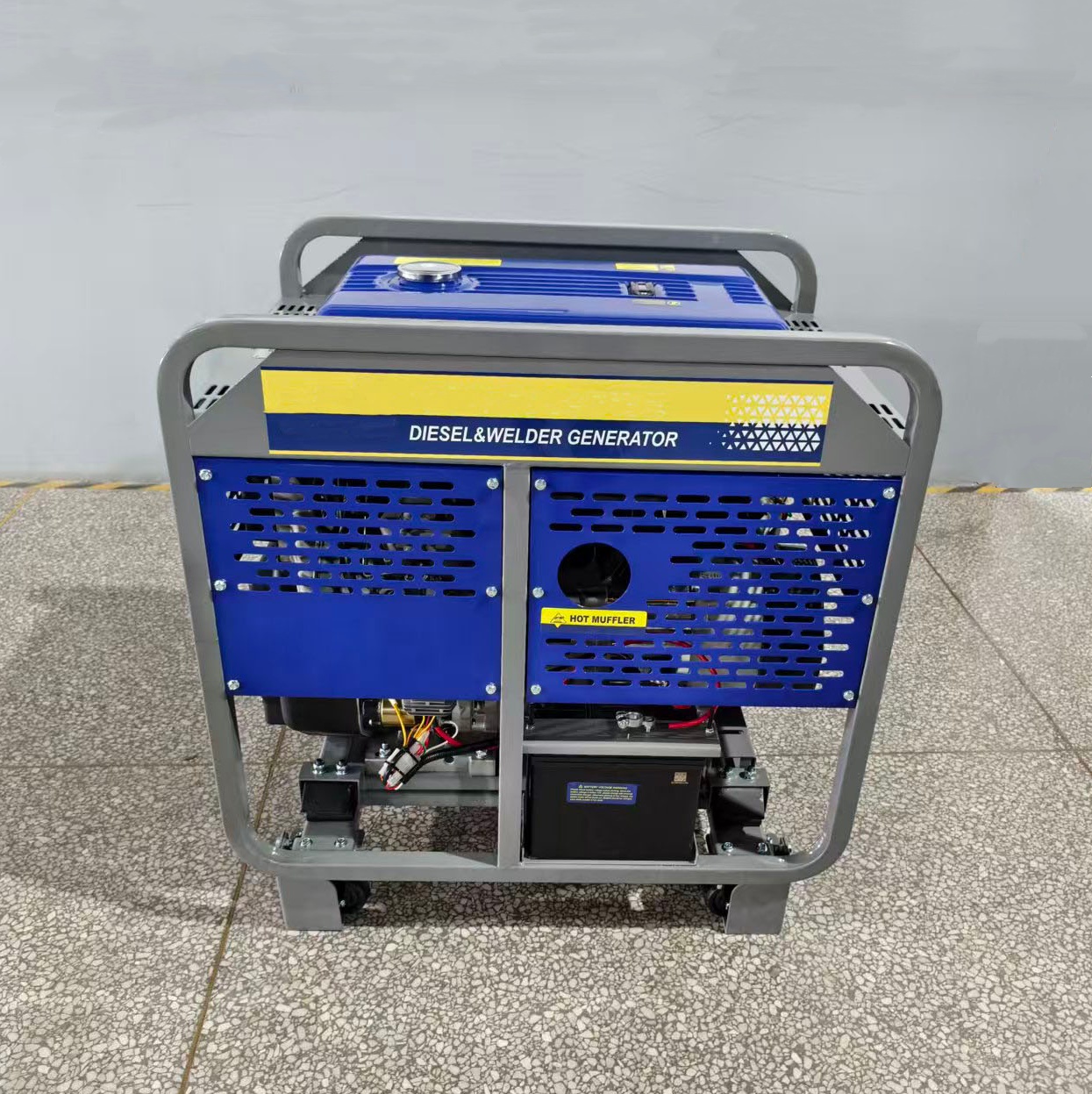

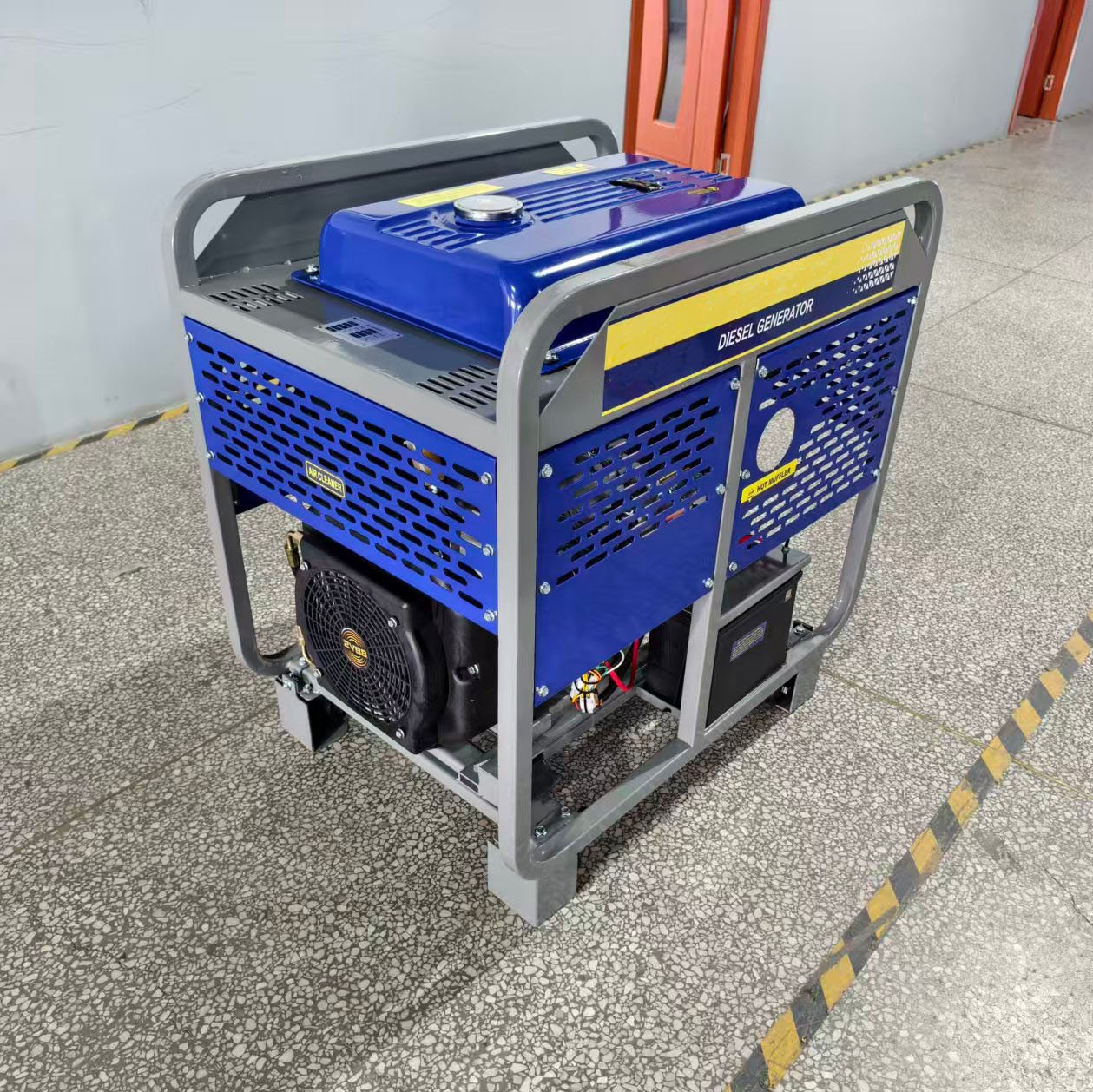

10kw portable diesel generator built for demanding job sites and reliable home backup. This unit combines the rugged performance of a 2 cylinder diesel generator with the convenience of an electric start diesel generator system, all housed in a heavy-duty portable frame for maximum versatility.
10kw Portable Diesel Generator Features & Benefits
The 876cc Engine: Our Most Powerful Single-Cylinder This 4 stroke diesel generator, featuring the strongest single cylinder, provides unparalleled low-speed torque and structural simplicity. Combined with the ultimate heat dissipation brought by the open frame design, it ensures amazing starting ability and durability for continuous operation when driving heavy-duty equipment such as welding machines and water pumps. |
10kW of Raw Power for Your Biggest Jobs The amazing low-speed torque and prime mover provided by the 10kw portable diesel generator's large displacement engine, combined with the ultimate heat dissipation and rigid support endowed by the open frame structure, ensure unparalleled starting ability, continuous output stability, and fast on-site maintenance under impact heavy loads. It is a combination of pure power and practicality. |
Built for a Long, Hard Life Every aspect of this 2 cylinder diesel generator—from materials and structure to the maintenance interface—is engineered for ultimate durability and maintainability. This ensures that its operational lifespan far surpasses that of comparable models under harsh working conditions. |
10kw Portable Diesel Generator Technical Specifications
| TYPE | YDE13000XE 2 Cylinder 4 Stroke 10kw portable Diesel Generator | |
| GENERATOR SET | Frequency(HZ) | 50/60 |
| Max Power(kW) | 10.5/11 | |
| Rate Power(kW) | 9.5/10 | |
| Rate AC Voltage(V) | 120、220、230、240、380、400 | |
| DC Output(V/A) | 12/8.3 | |
| Phase | Single/Three | |
| Altermator Type | Self-excited with AVR | |
| Starting System | Electric | |
| Noise Level at 7m(dBA) | 80-85 | |
| Fuel Tank Capacity(L) | 12.5 | |
| Running Time(h) | 7 | |
| ENGINE | Engine Model | YD2v88FE |
| Engine Type | Two-cylinder、V-twin、Air-cooled、4-stroke Diesel Engine | |
| Combustion System | Direct | |
| Displacement(mL) | 876 | |
| Engine Power(kW) | 12.5/13.5 | |
| Fuel Type | 0#or-10#light disel fuel | |
| Lub Oil Capacity(L) | 2.7 | |
| DIMENSION | Packing Size(mm) | 1140*700*880 |
| Gross Weight(kg) | 300 | |
| 20FT | 24 | |
| 40FT | 78 | |
Proven Performance in Real-World Applications
Heavy-Duty Job Site
This 4-stroke diesel generator integrates the powerful torque of a large displacement single-cylinder engine, the tolerance of an open frame structure to harsh environments, and unparalleled on-site maintenance convenience, providing a durable power source with an extremely low failure rate and high attendance rate for construction equipment under sustained high loads.
Mobile Welding & Industrial Repair
This 2 cylinder diesel generator can provide the instantaneous overload power and stable voltage required to drive industrial welding machines. Its open-frame structure is not afraid of metal dust and is easy to maintain quickly, ensuring reliable performance in demanding industrial environments.
Large-Scale Agriculture
This electric start diesel generator not only provides strong power to drive irrigation pumps, feed machines, and processing equipment, but its open-frame structure is also resistant to dust and moisture in the fields. Equipped with a standard large wheelset, 10kw portable diesel generator can flexibly move on muddy ridges, achieving mobile, reliable, and extremely low-maintenance power coverage for the entire farm.
Tailored Solutions, Customization & Packaging
Build Your Unique Product
Our full OEM/ODM service allows you to create a 10kw portable diesel generator that is uniquely yours. We are your partner for every detail:
Bullet Points:
● Custom Color: Match your brand's exact Pantone color scheme for the frame.
● Frame Styling: We can modify the frame design or add features like wheel kits and folding handles for enhanced portability.
● Control Panel: Design a completely custom panel layout with your brand, language, and required meters or digital readouts.
● Technical Specs: Configure the precise voltage (e.g., 110V/220V), frequency (50/60Hz), and socket types for any country.
Secure & Branded Packaging
This 10kw portable diesel generator unit (Gross Weight: 160kg / Size: 810*605*760mm) is packed in a reinforced 5-layer corrugated carton. We also offer customized packaging solutions, including full-color printed boxes or durable wooden crates. A 40HQ container loads 156 units.
Robust Power in a Portable Design: Our 10kw portable diesel generator delivers professional-grade, sustained power thanks to its sturdy 2 cylinder diesel generator engine. This configuration ensures smoother operation, superior torque, and excellent reliability for demanding job sites, while the portable frame allows for easy transport and deployment.
Efficient and Durable 4 Stroke Engine: The heart of this unit is a modern 4 stroke diesel generator system, which is engineered for superior fuel efficiency, lower emissions, and quieter operation compared to older 2-stroke designs. This provides a more economical and environmentally friendly power solution for long-duration tasks.
Instant, Effortless Electric Start: Featuring a dependable electric start diesel generator system, this unit starts immediately with the turn of a key or push of a button, even in cold weather. This eliminates the strain and difficulty of manual recoil starting, ensuring reliable power whenever you need it.

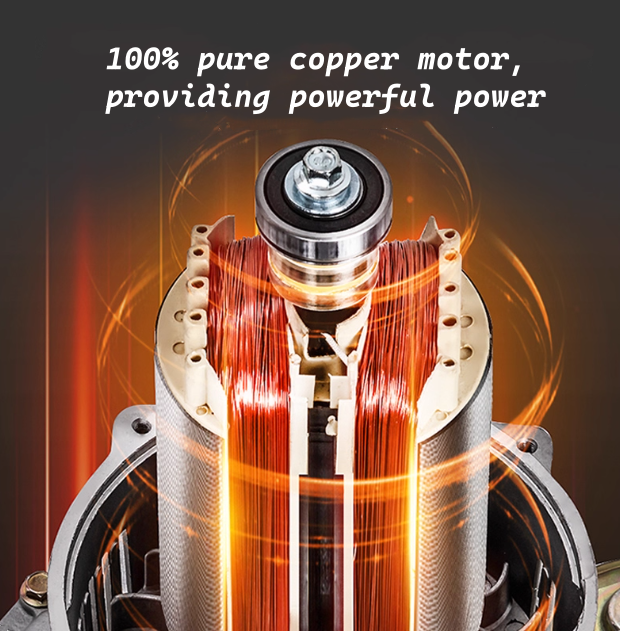

Stable Power for Sensitive Equipment: This generator is equipped with a quality alternator and an Automatic Voltage Regulator (AVR) to provide stable, clean power output. This makes the 10kw portable diesel generator safe for sensitive electronics like power tools, computers, and medical equipment, protecting them from damaging voltage fluctuations.
Ready for Any Application: The combination of high power output, portability, and an electric start diesel generator system makes this model incredibly versatile. It is perfectly suited for construction sites, agricultural operations, large events, and as a reliable backup power source for homes or small businesses, providing power wherever and whenever it's needed.
FAQs
Q1: What is the minimum order quantity (MOQ)?
A1: Our standard MOQ is 10 units electric start diesel generator. For fully customized OEM orders for new panels, styling, or colors, a higher MOQ may apply. Please contact our specialists to discuss your project.
Q2: Are you a factory or a trading company?
A2:We are a 2 cylinder diesel generator factory.
Q3: What is the noise level of this 10kw portable diesel generator?
A3: This is a heavy-duty open-frame model rated at 80-85 dBA. It is built for professional job sites, farms, and industrial areas where maximum power and durability are the top priorities.
Q4: What are the main maintenance requirements?
A4: The open-frame design provides easy access for service. Primary tasks involve regularly checking and changing the engine oil (2.0L capacity) and cleaning the air filter.
Q5: Do you provide spare parts?
A5: Yes, we maintain a full inventory of spare parts for all our models. Simply contact your sales representative to place an order.
Q6: What is the fuel consumption and runtime of the 10kw portable diesel generator?
A6: The 10kw portable diesel generator is designed for efficiency. While exact figures vary with load, its large-capacity fuel tank typically provides a runtime of 8-10 hours at 50-75% load, making it ideal for all-day operation on a job site or during extended power outages.
Q7: How reliable is the electric start system on this diesel generator?
A7: The electric start diesel generator system is engineered for maximum reliability. It includes a heavy-duty starter motor and a maintenance-free or low-maintenance battery. For added convenience and backup, many models also include a manual recoil start option.
