YEAPOO Featured Diesel Engines
Rated Power: 3.2 kW / 4.4 HP (3000 rpm); 3.7 kW / 5.0 HP (3600 rpm)
Max Power: 3.5 kW / 4.7 HP (3000 rpm); 4.0 kW / 5.5 HP (3600 rpm)
High 20:1 Compression Ratio for superior combustion and torque
247cc Displacement (Bore × Stroke: 73×59 mm)
Dual-Speed Configuration for 50Hz and 60Hz compatibility
Manual (F) or Electric (E) Start System
2.5L Fuel Tank Capacity with low fuel consumption
PTO Crankshaft Output for direct mechanical coupling
Compact Size: 420×380×470 mm
Net Weight: F: 27 kg / FE: 33 kg
Lube Oil Capacity: 0.8L (SAE 10W-30 / 15W-40, above CD grade)
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
173F diesel engine designed for small diesel generators, water pumps, agricultural machinery, and light industrial equipment. The single cylinder 4 stroke diesel engine delivers consistent power output with dual-speed flexibility (3000/3600 rpm) and optional manual or electric start systems, making it ideal for both commercial and portable applications.
Rated Power: 3.7 kW / 5.0 HP (3000 rpm); 4.0 kW / 5.4 HP (3600 rpm)
Max Power: 4.1 kW / 5.6 HP (3000 rpm); 4.4 kW / 6.0 HP (3600 rpm)
High 20:1 Compression Ratio for strong torque and fuel efficiency
296cc Displacement (Bore × Stroke: 78×62 mm) for higher output headroom
Dual-Speed Configuration (3000/3600 rpm) to match 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment
3.5L Fuel Tank supporting extended operation
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Compact Size: 480×460×520 mm
Net Weight: F: 34 kg / FE: 40 kg
Lube Oil Capacity: 1.1L (SAE 10W-30 / 15W-40, above CD grade)
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
Built for higher output and longer runs, the 178F diesel engine upgrades to a 296cc displacement with a 20:1 compression ratio, a larger 3.5L fuel tank, and a generous 1.1L oil capacity. With dual-speed options (3000/3600 rpm) and manual or electric start, it's a dependable power source for mid-size generators, pumps, agricultural implements, and light industrial equipment.
Rated Power: 6.6 kW / 9.0 HP (3000 rpm); 7.2 kW / 9.4 HP (3600 rpm)
Max Power: 7.3 kW / 9.9 HP (3000 rpm); 7.9 kW / 10.8 HP (3600 rpm)
Direct Injection (DI) for improved fuel efficiency, cold starts, and throttle response
456cc Displacement (Bore × Stroke: 88×75 mm) with 19:1 compression for high torque density
Dual-Speed Configuration (3000/3600 rpm) to support 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment and fast turn-ups
5.5L Fuel Tank enabling extended operation between refills
PTO Crankshaft Output for direct coupling to alternators, pumps, compressors, and more
Lube Oil Capacity: 1.65L (SAE 10W-30 / 15W-40, above CD grade) for longer service intervals
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
Compact Size: 500×460×555 mm; Net Weight: F: 47 kg / FE: 53 kg

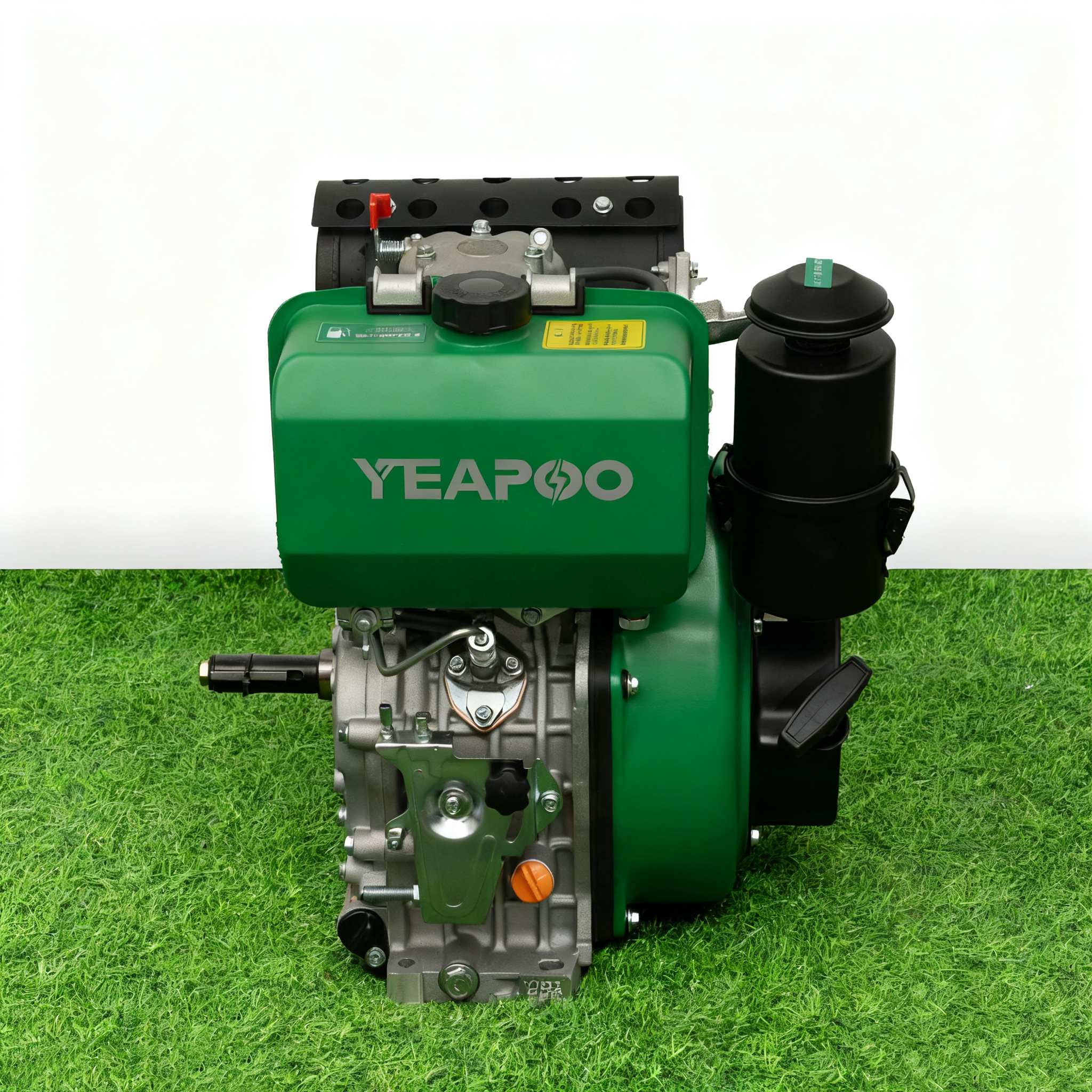

188F diesel engine is a high-output, direct-injection single-cylinder diesel built for demanding duty cycles. With a 456cc displacement, 19:1 compression ratio, dual-speed operation (3000/3600 rpm), and a generous 5.5L fuel tank, 4 stroke single cylinder diesel engine delivers strong torque, efficient combustion, and long runtime for mid-size generators, irrigation pumps, agricultural implements, and light industrial equipment. Choose manual (F) or electric (E) start to match your deployment needs.
Rated Power: 7.6 kW / 10.3 HP (3000 rpm); 8.6 kW / 11.7 HP (3600 rpm)
Max Power: 8.4 kW / 11.4 HP (3000 rpm); 9.5 kW / 12.9 HP (3600 rpm)
Direct Injection (DI) for efficient combustion, stronger low-end torque, and confident cold starts
498cc Displacement (Bore × Stroke: 92×75 mm) with 19:1 compression for high torque density
Dual-Speed Configuration (3000/3600 rpm) for 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment and rapid turn-ups
5.5L Fuel Tank supporting sustained runtime
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Lube Oil Capacity: 1.65L (SAE 10W-30 / 15W-40, above CD grade) for longer service intervals
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
Compact Size: 500×460×555 mm; Net Weight: F: 49 kg / FE: 55 kg

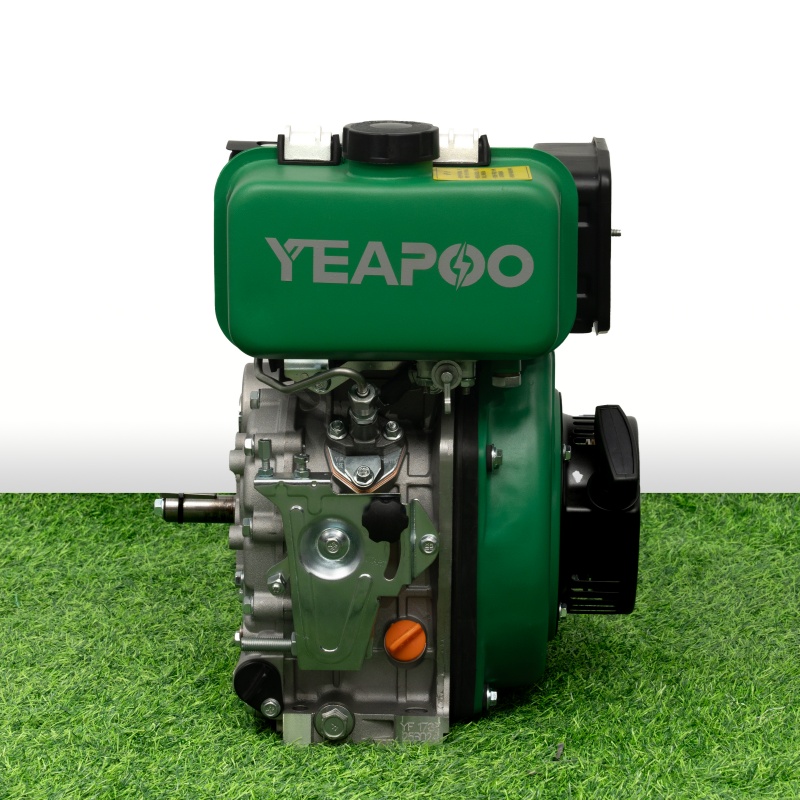

The 10hp air cooled diesel engine is a high-torque, direct-injection single cylinder diesel engine 192F designed for heavy-duty uptime. With a 498cc displacement, a 19:1 compression ratio, dual-speed operation (3000/3600 rpm), and a 5.5L fuel tank, it delivers strong, efficient power for mid-to-large generators, irrigation pumps, agricultural implements, and compact industrial machinery. Choose manual (F) or electric (E) start to match your deployment needs.
Rated Power: 9.6 kW / 13.0 HP @ 3000 rpm
Max Power: 10.6 kW / 14.5 HP @ 3000 rpm
Direct Injection (DI) for efficient burn, strong low-end torque, and confident cold starts
668cc Displacement (Bore × Stroke: 100 × 85 mm) with 19:1 compression
Fixed 3000 rpm for 50 Hz gensets and steady-speed drivetrains
Fuel Consumption: 2.7 L/h (typical; varies by load & conditions)
Fuel Tank: 6.5 L for extended operation
Oil Capacity: 2.1 L (SAE 10W-30 / 15W-40, above CD grade) for longer service intervals
Starting System: Electric start (E)
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Compact Footprint: 525 × 490 × 595 mm; Net Weight: 62 kg
Fuel Type: 0# diesel (4°C–45°C) or −10# diesel (−5°C–4°C)

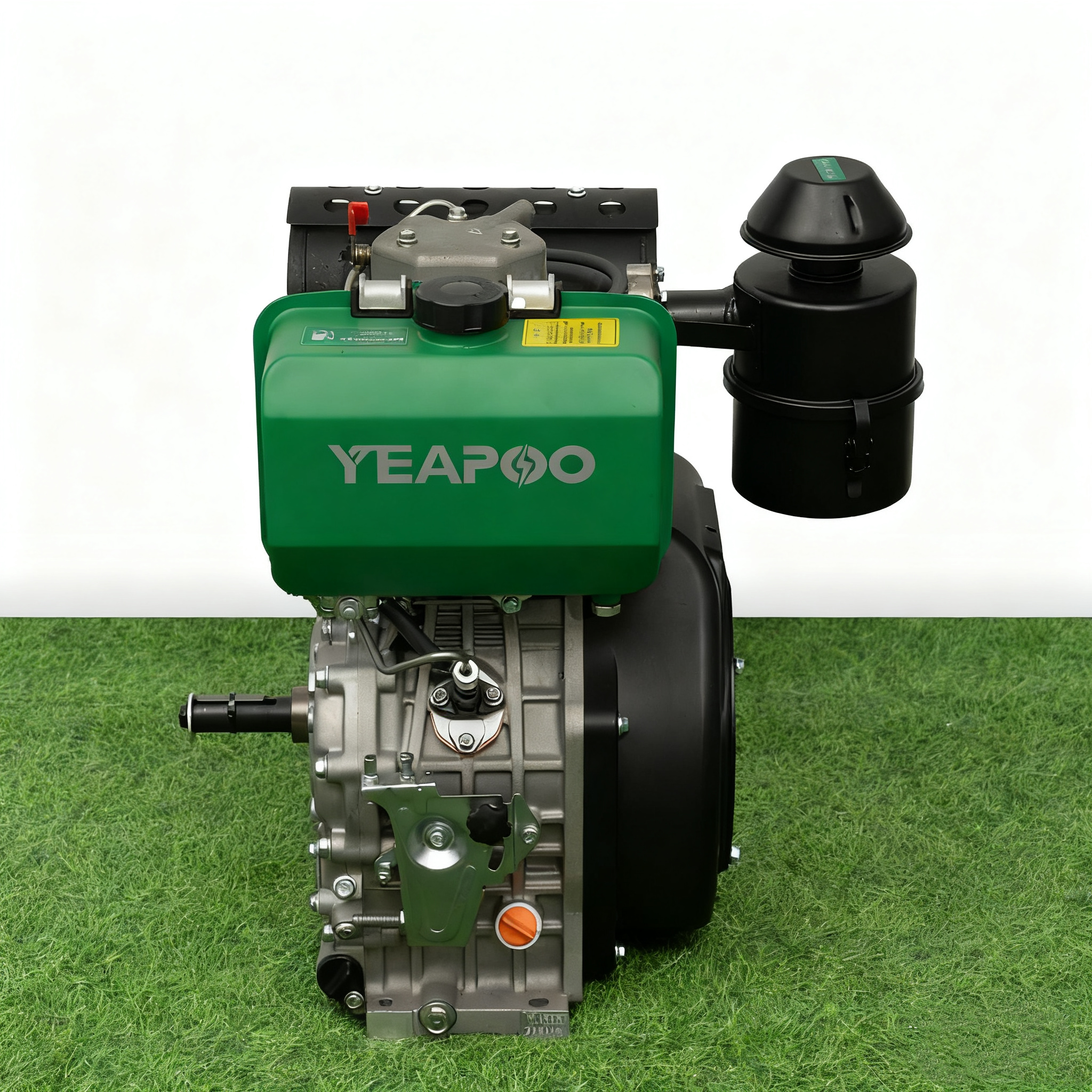

The 1100F diesel engine is a 13hp air cooled single cylinder diesel engine, a heavy-duty, direct-injection single built for stable 3000 rpm operation. With a large 668cc displacement, 19:1 compression ratio, and electric start, it delivers strong torque, clean combustion, and dependable uptime for mid-size generators, high-flow pumps, agricultural implements, and compact industrial equipment.
Rated / Max Power @ 3000 rpm: 12.5 kW / 15.2 HP · 13.0 kW / 16.7 HP
Direct Injection (DI) for efficient burn, stronger low-end torque, and reliable cold starts
762cc Displacement (Bore × Stroke: 105 × 88 mm) with 18:1 compression
Fixed 3000 rpm platform for 50 Hz gensets and steady-speed drivetrains
Fuel Consumption: ~3.1 L/h (varies with load & conditions)
Fuel Tank: 6.5 L for extended runtime
Oil Capacity: 2.1 L (SAE 10W-30 / 15W-40, above CD grade) for longer service intervals
Starting System: Electric start
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Footprint & Weight: 525 × 500 × 650 mm, 68 kg net
Fuel Type: 0# diesel (4°C–45°C) or −10# diesel (−5°C–4°C)
Ambient Guidance: For continuous operation, AT ≤ 40°C recommended

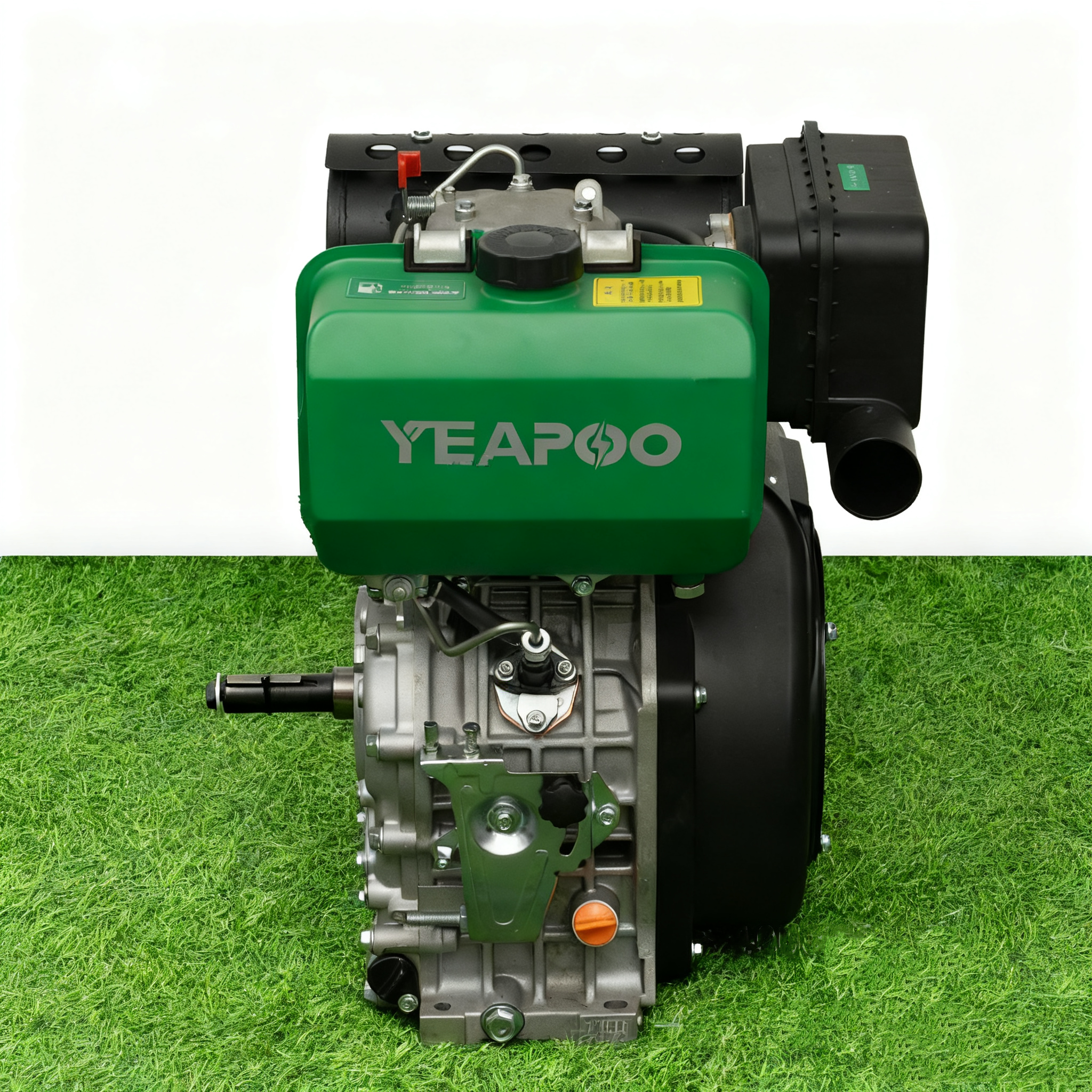

The YD1105DFE single cylinder air cooled diesel engine is a high-displacement, direct-injection single built for stable 3000 rpm operation. Delivering 12.5 kW rated power (13.0 kW max), it combines a 762cc cylinder, 18:1 compression, electric start, and a robust 2.1 L oil capacity to provide strong torque, efficient combustion, and dependable uptime for mid-to-large generators, high-flow pumps, agricultural implements, and compact industrial equipment.
186F diesel engine with strong power and advanced technology
Good fuel economy and low operating cost
Durable and sturdy, with strong environmental adaptability
Emission friendly, low vibration noise
186F diesel engine is a versatile power source with mature technology, sturdy durability, and good economy. Single cylinder 4 stroke diesel engine is widely used in fields such as agriculture, engineering machinery, and generator sets due to its strong power, excellent environmental adaptability, and low fuel consumption
Model NO.: YD195F/FE
Specification: 531CC
Cooling Cylinder: Air-Cooled
Number of Strokes: 4 Stroke
Number of Cylinders: Single Cylinder
Type: Combustion Engine
Speed: High Speed
Price: Factory Price
Service: ODM/OEM
Origin: China

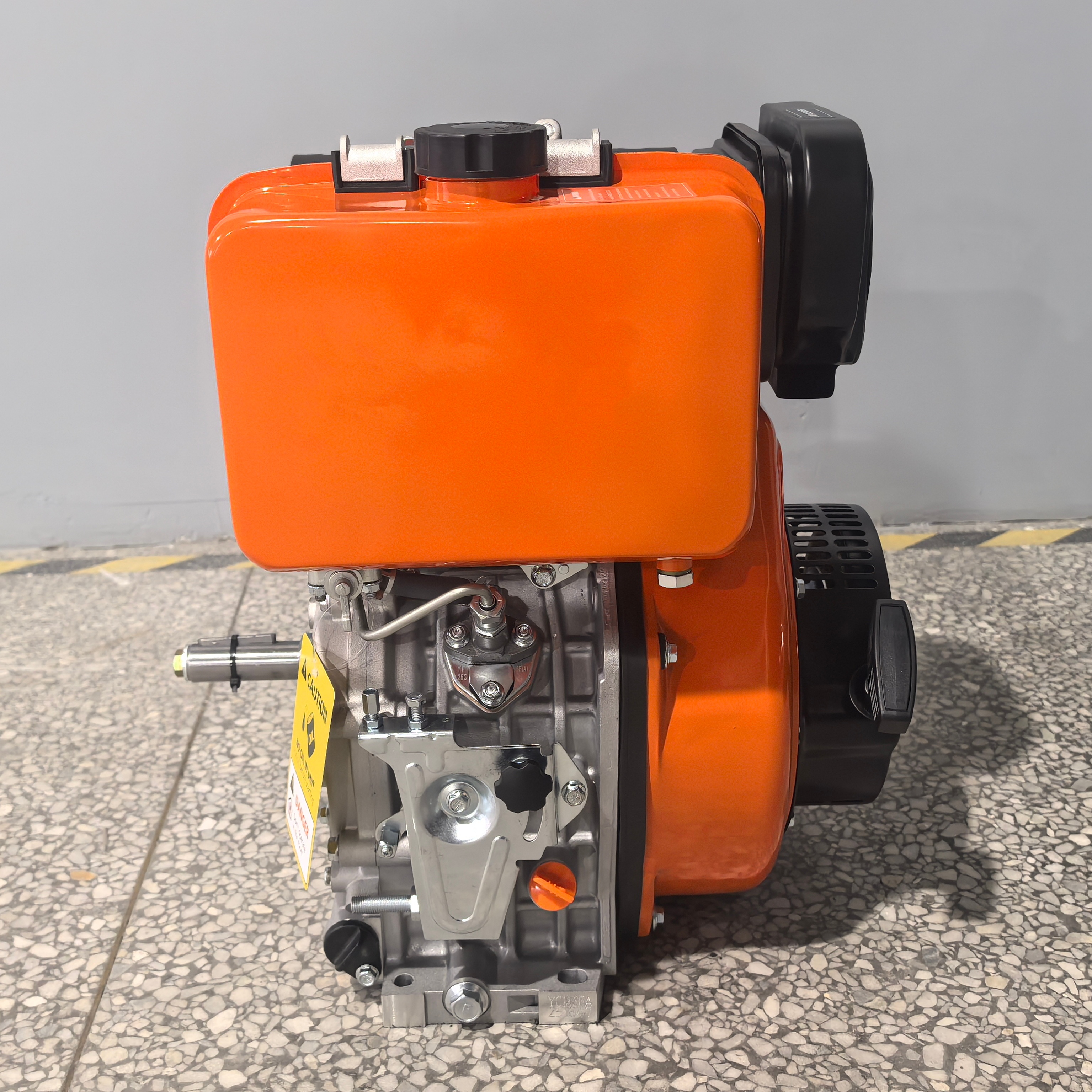

The 195F diesel engine is a robust 12 HP (9.0 kW) single-cylinder, 4-stroke air-cooled diesel engine designed for heavy-duty industrial and agricultural applications. Featuring a 531cc displacement and direct injection system, it delivers strong low-speed torque and high fuel efficiency. The 195f diesel engine model offers flexible starting options (manual or 12V electric start) and is engineered with an optimized cooling system for low vibration and quiet operation, making it an ideal power source for generators, water pumps, construction machinery, and agricultural equipment.
Rated Power: 13.8 kW (3000 rpm); 14.8 kW (3600 rpm)
Max Power: 14.8 kW (3000 rpm); 15.5 kW (3600 rpm)
High 20:1 Compression Ratio for strong torque and fuel efficiency
Dual-Speed Configuration (3000/3600 rpm) to match 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment
12.5L Fuel Tank supporting extended operation
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Compact Size: 580×485×600 mm
Net Weight: FE: 70 kg
Lube Oil Capacity: 3L (SAE 10W-30 / 15W-40, above CD grade)
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
Built for higher output and longer runs, the product upgrades to a 912cc displacement with a 20:1 compression ratio, a larger 12.5L fuel tank, and a generous 3L oil capacity. With dual-speed options (3000/3600 rpm) and manual or electric start, it's a dependable power source for mid-size generators, pumps, agricultural implements, and light industrial equipment.
Rated Power: 14.8 kW (3000 rpm); 16kW (3600 rpm)
Max Power: 16 kW (3000 rpm); 17.5 kW (3600 rpm)
High 20:1 Compression Ratio for strong torque and fuel efficiency
Dual-Speed Configuration (3000/3600 rpm) to match 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment
12.5L Fuel Tank supporting extended operation
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Compact Size: 580×520×640 mm
Net Weight: FE: 75 kg
Lube Oil Capacity: 4L (SAE 10W-30 / 15W-40, above CD grade)
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)

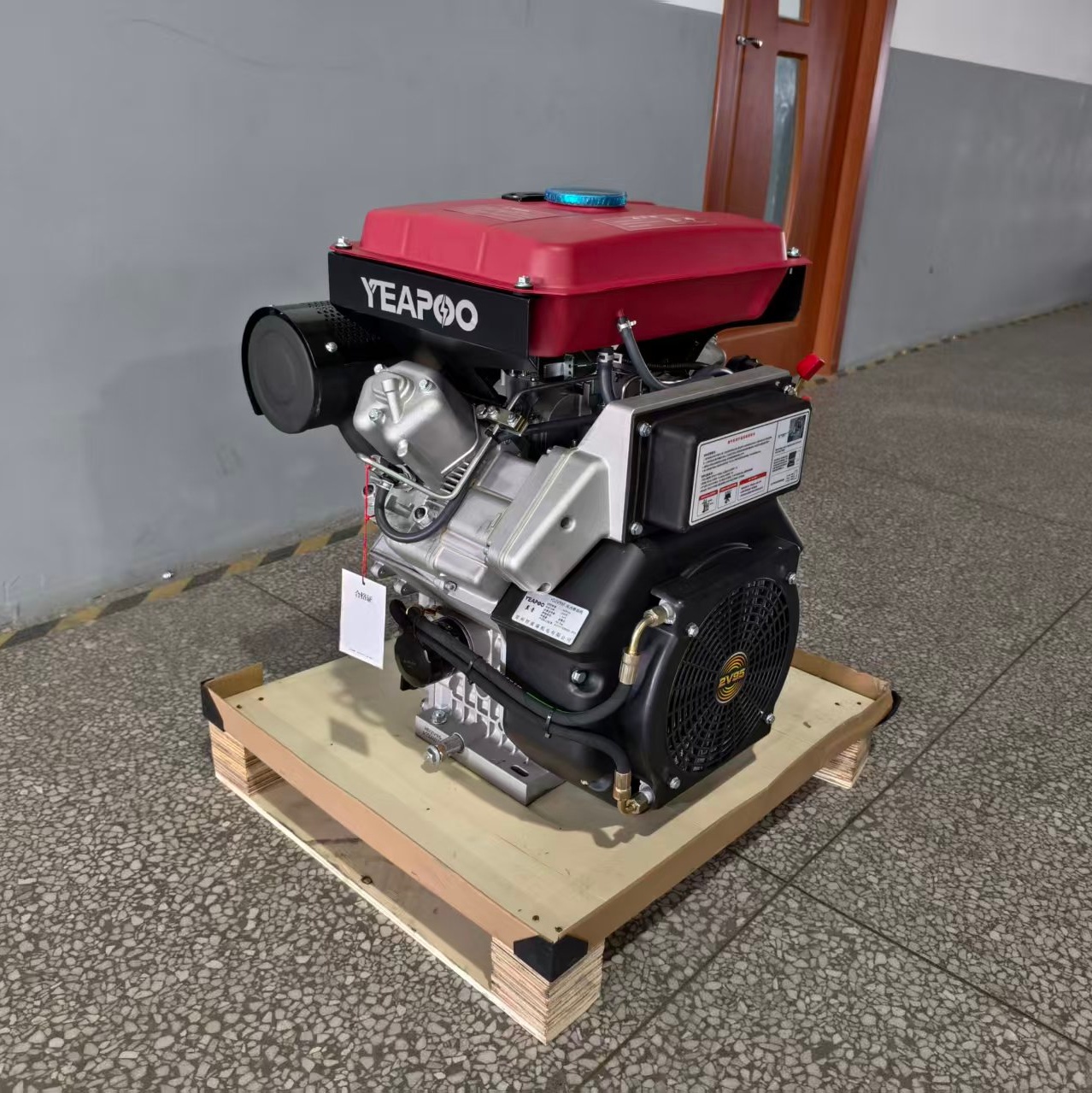

Built for higher output and longer runs, the two cylinder diesel generator product upgrades to a 912cc displacement with a 20:1 compression ratio, a larger 12.5L fuel tank, and a generous 3L oil capacity. With dual-speed options (3000/3600 rpm) and manual or electric start, it's a dependable power source for mid-size generators, pumps, agricultural implements, and light industrial equipment.
Rated Power: 18 kW (3000 rpm); 19 kW (3600 rpm)
Max Power: 19 kW (3000 rpm); 20 kW (3600 rpm)
High 20:1 Compression Ratio for strong torque and fuel efficiency
Dual-Speed Configuration (3000/3600 rpm) to match 50/60Hz systems and varied drivetrains
Manual (F) or Electric (E) Start for flexible deployment
12.5L Fuel Tank supporting extended operation
PTO Crankshaft Output for direct coupling to alternators, pumps, and compressors
Compact Size: 620×580×660 mm
Net Weight: FE: 90 kg
Lube Oil Capacity: 4L (SAE 10W-30 / 15W-40, above CD grade)
Fuel Type: 0# Diesel (4°C–45°C) or -10# Diesel (-5°C–4°C)
Built for higher output and longer runs, the product upgrades to a 1247cc displacement with a 20:1 compression ratio, a larger 12.5L fuel tank, and a generous 4L oil capacity. With dual-speed options (3000/3600 rpm) and manual or electric start, it's a dependable power source for mid-size generators, pumps, agricultural implements, and light industrial equipment.
Golden displacement with ample torque: Horizontal water cooled diesel engine has a displacement of approximately 1.194 liters, which is the foundation of its strong power output.
Stable and reliable operation: The single cylinder horizontal structure has undergone long-term market testing, with a simple structure and very mature technology.
Saving fuel means saving money: the core configuration is a direct injection combustion system, which can make diesel combustion more complete.
Simple and easy to maintain structure: Thanks to its concise modular design, daily maintenance and troubleshooting are very convenient, and maintenance costs are also controlled at a low level.
This R180 diesel engine is a reliable and time-tested power solution designed for small to medium agricultural and industrial applications. As a robust 8hp diesel engine, it delivers consistent performance with excellent fuel efficiency, making it an ideal choice for users who need dependable power output without complexity.
Built as a durable single cylinder diesel engine, this model features a simple yet sturdy structure that ensures easy maintenance and long service life. The advanced water cooled diesel engine system provides superior heat dissipation compared to air-cooled alternatives, allowing the engine to run smoothly even under continuous heavy loads.
As a classic conventional diesel engine, the R180 diesel engine adopts direct injection technology for cleaner combustion, lower noise levels, and reduced vibration. It represents the perfect balance between traditional reliability and modern performance standards.
Classic structure, sturdy and durable.
Maintaining peace of mind.
Economical, sturdy and durable.
Strong power and large reserve torque.
Smooth operation: Adopting single balance axis technology effectively reduces vibration and noise, making the work more stable.
Durable power: The core components are made of materials and processes such as alloy cast iron and nitride rolled crankshaft, ensuring excellent wear resistance and strength, and long-lasting durability.
It has a lightweight structure, is economical and fuel-efficient, is sturdy and durable, and is a classic low-power diesel engine that has been tested for a long time.
Advantages: Air cooling without adding water, compact structure; The spline shaft has a large output load capacity, good centering, and stable and reliable transmission.

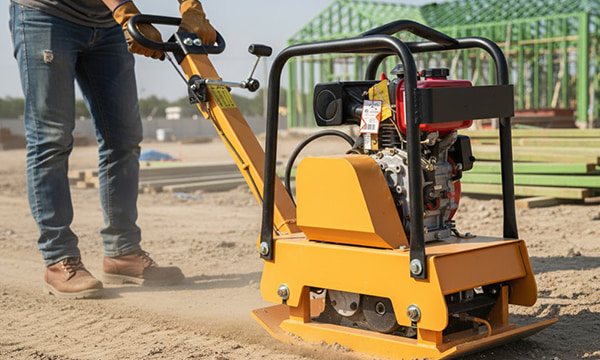

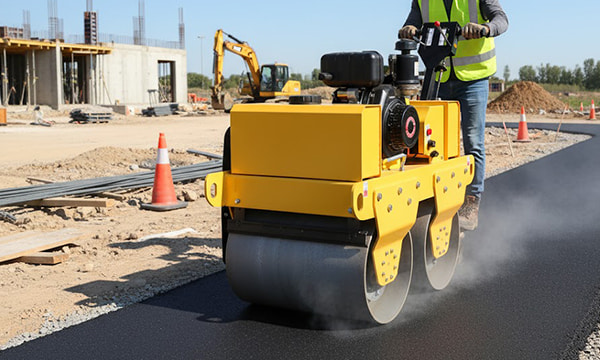

Usage: Directly supporting construction machinery (such as rollers and pavers), agricultural machinery (such as combine harvesters), vehicle mounted equipment, mobile lighting and welding machines, etc.
Why Choose YEAPOO Air Cooled Diesel Engines?
Professional ManufacturerAs a best small diesel engine manufacturer, we are dedicated to providing excellent quality at a competitive price.- Quality and PriceOur air cooled single cylinder diesel engine products stand out in fierce competition with their superior quality and competitive pricing.
- International CertificationsMany of our small diesel engine electric start products have obtained EU CE certification and ISO9001 quality management system certification.
- CraftsmanshipWe use high-quality components and subject them to rigorous testing to ensure that each air cooled single cylinder diesel engine set operates stably under various conditions.
- Customized ServicesYEAPOO offers tailored air cooled single cylinder diesel engine product services to meet the specific needs of different countries and customers.
- Experienced TeamThe team at YEAPOO has an average of over 7 years of industry experience. We possess extensive knowledge in solving complex problems and preventing potential issues.
Not Sure Which Diesel Engine is Right for You?
Whether you need power for construction, agriculture, or any other demanding application, our air cooled single cylinder diesel engines are designed to meet your specific needs. Our experts are ready to help you find the best match.
