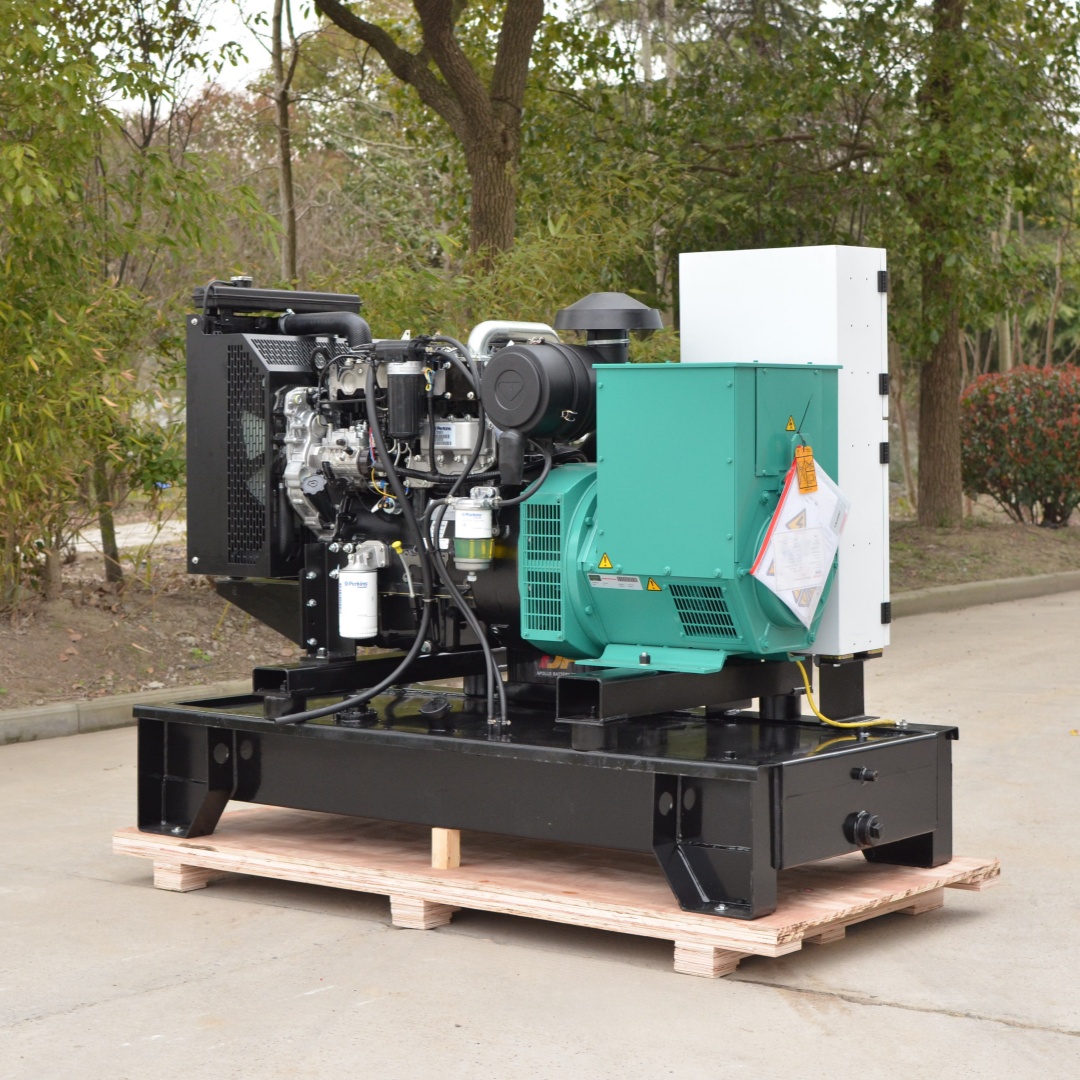

The 48kW Industrial 1500 RPM diesel generator is a heavy-duty standby and prime power solution designed for factories, hospitals, data centers, commercial buildings, mining sites, and telecom facilities requiring reliable three-phase power. Rated at 48kW / 60kVA prime power (cosφ=0.8) with 1500 RPM operation, the lower engine speed reduces wear and extends service life compared to 3000 RPM portable units.
Powered by a four-cylinder, water-cooled, turbocharged diesel engine (Yuchai / Ricardo / Yangdong / Cummins-type options available depending on market), this 48kW diesel generator unit runs at a steady 1500 RPM delivering smooth, stable output. Paired with a 100% copper brushless alternator with AVR (Automatic Voltage Regulator), it produces clean, stable 220V/400V three-phase power with <±1% voltage regulation and low THD — safe for sensitive electronics, servers, and precision equipment.
The genset is ATS (Automatic Transfer Switch) compatible: when mains power fails, the ATS signals the generator to auto-start; when utility power returns, it shuts down automatically — ensuring seamless, unattended backup protection. A heavy-duty steel base frame with anti-vibration mounts, 24V electric start system with free-maintenance battery, and an 8–10 hour built-in fuel tank complete the package. Available in open-frame or weatherproof silent canopy (72–78 dBA @ 7m).
Prime Power 48kW / 60kVA — Standby 53kW / 66kVA — 3-Phase 400V/230V, 50Hz, PF 0.8
1500 RPM Water-Cooled 4-Cylinder Diesel Engine — Lower revs = longer engine life, better fuel economy
AVR Brushless Alternator (100% Copper) — Self-excited, ±1% voltage regulation, IP23, Class H insulation
ATS Compatible — Auto start/stop with optional Automatic Transfer Switch for seamless backup
24V Electric Start System — Includes maintenance-free lead-acid battery & battery charger
Built-in 8–10 Hour Fuel Tank — Large capacity base tank; extended day-tank available
Digital Control Panel — Deep Sea / Smartgen / ComAp controller with LCD display, alarms & history log
Safety Protections — Low oil pressure shutdown, high water temp alarm, overspeed, overload circuit breaker
Open Type & Silent Canopy Available — Weatherproof acoustic enclosure option for noise-sensitive sites
OEM/ODM — Custom brand, color, controller, socket box, ATS, trailer-mounted option
48KW Diesel Generator Technical Specifications
| TYPE | 48kW Industrial 1500 RPM Diesel Generator | ||
| GENERATOR SET | Frequency(HZ) | 50 | 60 |
| Max Power(kW) | 50 | 52 | |
| Rate Power(kW) | 48 | 50 | |
| Rate AC Voltage(V) | 120、220、230、240、380、400 | ||
| DC Output(V/A) | 12/8.3 | ||
| Phase | Single/Three | ||
| Altermator Type | Self-excited with AVR | ||
| Starting System | Electric | ||
| Noise Level at 7m(dBA) | 72-74 | ||
| Fuel Tank Capacity(L) | 120 | ||
| Running Time(h) | 8 | ||
| ENGINE | Engine Model | Weichai,Ricardo, Quanchai, Yuchai, Yangdong, | |
| Engine Type | Four cylinder, upright, four stroke, water-cooled diesel engine | ||
| Combustion System | Direct | ||
| Fuel Type | 0#or-10#light disel fuel | ||
| DIMENSION | Packing Size(mm) | 2300X1000X1250 | |
| Gross Weight(kg) | 1000 | ||
✔ 1500 RPM = Longer Life — Operating at half the speed of portable generators, the 1500 RPM design significantly extends engine and alternator lifespan while reducing noise and vibration.
✔ Brushless AVR Alternator for Sensitive Loads — Clean power with tight voltage regulation protects computers, PLCs, and medical devices from surges or frequency drift.
✔ True ATS Automation — Fully compatible with automatic transfer switches for hands-off backup power — critical for hospitals, data centers, and unattended sites.
✔ Proven Industrial Engines — Choose from Yuchai, Ricardo, Yangdong, or other reputable brands, all tested and matched to our alternator sets.
✔ Factory-Direct Customization & Support — CE/ISO certified, full load tested before shipment, 12-month / 1000-hour warranty, global spare parts supply, OEM/ODM service.
Packing: Plywood case (open type) or plastic wrap + plywood pallet (silent type), seaworthy
Warranty: 12 months or 1000 running hours (whichever first)
Included: Full load test report, operation manual, wiring diagram, spare parts list
Support: Online technical assistance, commissioning guidance, global after-sales network
