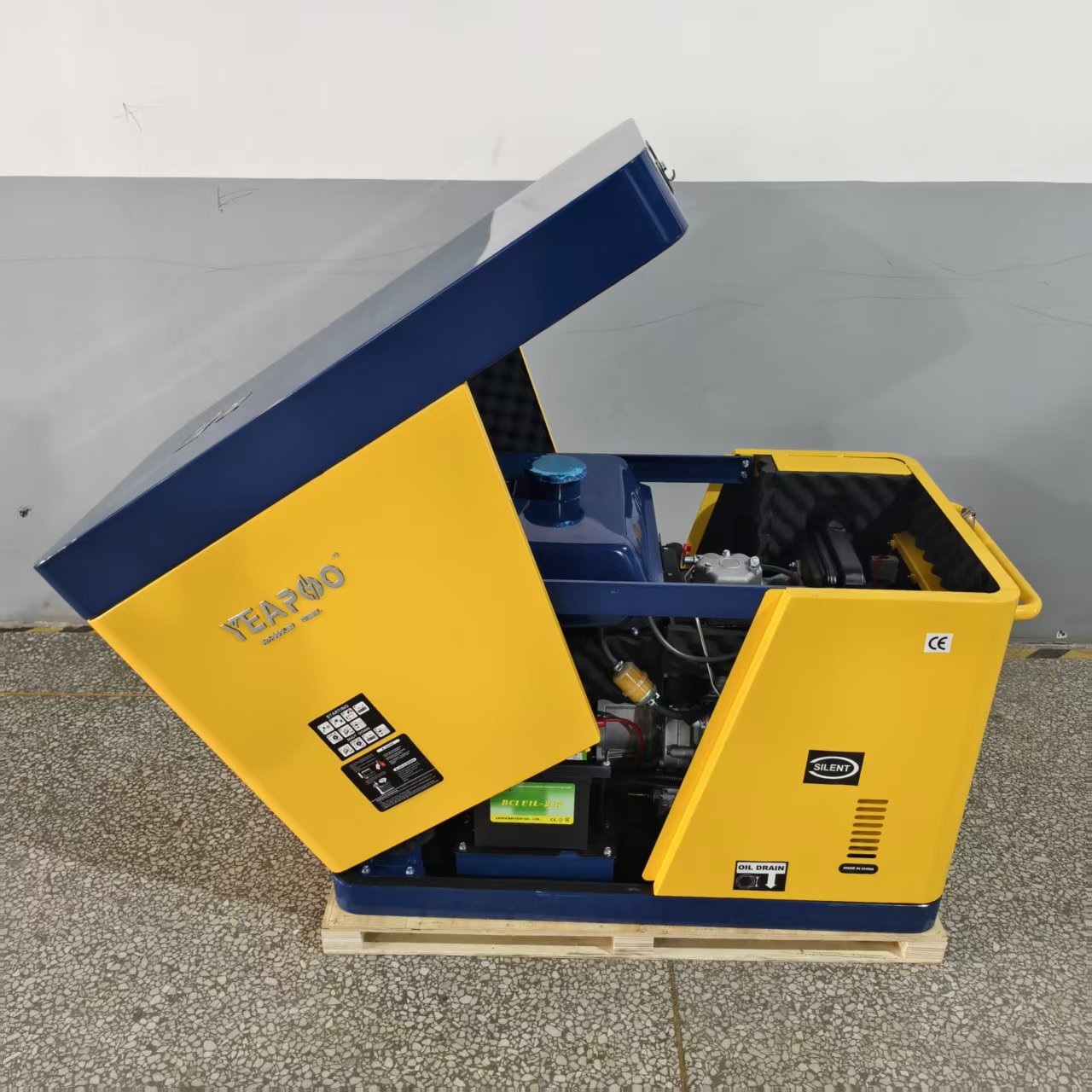

The top cover or side panel of the chassis is designed to be flip-open. This type of unit primarily addresses the pain points of traditional units, such as limited maintenance space and inconvenient operation, while also meeting the operational requirement of low noise
Silent Diesel Generator Technical Specifications
| TYPE | YDE12000SE Single Phase Diesel Generator | ||
| GENERATOR SET | Frequency(HZ) | 50 | 60 |
| Max Power(kW) | 7 | 7.5 | |
| Rate Power(kW) | 6.5 | 7 | |
| Rate AC Voltage(V) | 120、220、230、240、380、400 | ||
| DC Output(V/A) | 12/8.3 | ||
| Phase | Single/Three | ||
| Altermator Type | Self-excited with AVR | ||
| Starting System | Electric | ||
| Noise Level at 7m(dBA) | 72-74 | ||
| Fuel Tank Capacity(L) | 16 | ||
| Running Time(h) | 7 | ||
| ENGINE | Engine Model | YD195FE | |
| Engine Type | Single-cylinder、Vertical、Air-cooled、4-stroke Diesel Engine | ||
| Combustion System | Direct | ||
| Displacement(mL) | 531 | ||
| Engine Power(kW) | 9 | 9.7 | |
| Fuel Type | |||
| Lub Oil Capacity(L) | 1.65 | ||
| DIMENSION | Packing Size(mm) | 980*560*760 | |
| Gross Weight(kg) | 180 | ||
| 20FT | 72 | ||
| 40FT | 144 | ||
